Introduction
Air bubble vegetables and fruit washing machine is mainly used for washing leafy vegetables like cabbages, Chinese chives, spinach etc., stem vegetables like carrots, celeries etc. and fruits. Both complete materials and materials in pieces can be washed.
The Mushroom Washer use surfing, bubbling, water spray to wash fruits and vegetables, can clean the soil on the surface of the vegetable and fruit completely , can also add the right amount of reagents for sterilization to wash out the effect of pesticide residues on the surface of the vegetables and fruits.
The Mushroom Washer adopt stainless steel SUS304 material (except the motor, bearings and other standard parts),completely in line with food hygiene requirements, The machine is equipped with bubble generator to make the materials tumble, remove pesticide residues on the surface of material. At the same time,you can add the right amount of potions to disinfection of solid color, floats are available to overflow from the overflow tank, sediment from the discharge outlet to achieve the purpose of cleaning.
The frame of machine is made of food grade SUS304 stainless steel, complying with hygiene requirement and easy to maintain.
It consists of motor & speed reducer, water pump, air pump, conveyor belt, washing tank, water jet, water pipe, valve, control panel, etc.
Water recycling system is equipped under the conveyor belt. Filter sieve will stop the impurity to enter into the water tank.
| Model | Dimension | Motor power | Mesh band width | Capacity |
| QPJ-300 | 300*125*130cm | 3.6kw | 800mm | 400-500 kg/h |
| QPJ-400 | 400*125*130cm | 4.1kw | 800mm | 600-800 kg/h |
| QPJ-500 | 500*125*130cm | 5.1kw | 800mm | 1200-1500 kg/h |
| QPJ-600 | 600*125*130cm | 5.5kw | 800mm | 1800-2000 kg/h |
Application
It can be used in frozen food processing industries, pickles processing industries, aquatic food processing industries etc.
The machine uses air bubbles to clean materials. High-pressure bubbles generated from bubble generator in the pool can wash materials like handwashing. Materials, turning up and down in the water, are slightly rubbed and then thoroughly washed. Washed materials are automatically lifted to the next process by the conveyor belt.
Advantage:
1.Spraying valves above the pool can clean materials from above.
2.Spraying valves at the lifting part can be connected to the tap water for secondary cleaning of materials.
3.Washed materials are automatically lifted and conveyed to the next process or container.
4.You can control the speed freely by the frequency converter.
5.Customization is welcomed.
6 Food grade SUS304 stainless steel
7 High cleaning ability, high washing rate
Feature
1 Equipped with a bubble generator to make the objects roll over
2 Equipped with VFD to better adjust the belt speed
3 Equipped with separate filter tank and water recycling system
4. The design of Separate auxiliary tank is easy for transport and good for water circulation
5. Ozone Generator to disinfect and sterilize (OPTIONAL)
6. Water circulation device is installed to save water(OPTIONAL)
7. Various Electrical Voltage can be customized made
Service
1) Professional advice and extensive experience help to choose the machine.
2) Lifelong maintenance and thoughtful technical support
3) Test run and install video/CD, Maunal book, toolbox and machine to send.
4) Our engineers can install the machine abroad
5) One year quality assurance Material and process defects for equipment and parts are guaranteed for one year. Any parts that need to be replaced will be shipped free of charge, but will not include the installer. The warranty does not cover abuse or user error.
Customization:
| 1 | Ozone generator for sterilization and disinfection and decomposition of pesticide residues |
| 2 | Ultrasonic module through ultrasonic vibration to clean the products completely |
| 3 | Air fans to be added at the outlet for simple frying after washing |
| 4 | Lifting device can be added to life the mesh belt for easy cleaning of the tank |
| 5 | Any other functions you need, tell us freely, we will design special machine for you |
Product Tags:
|
|

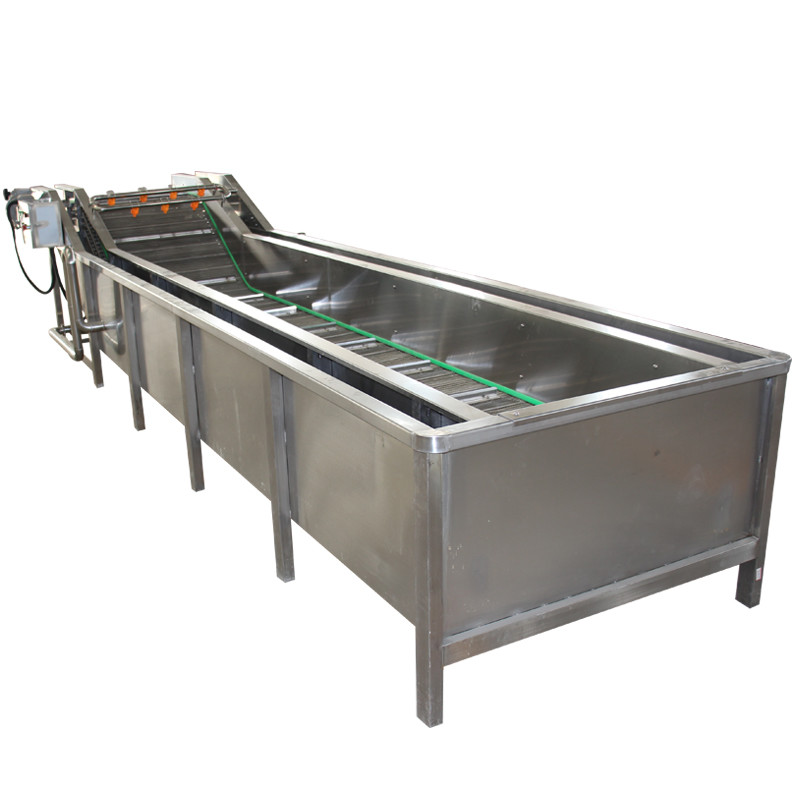

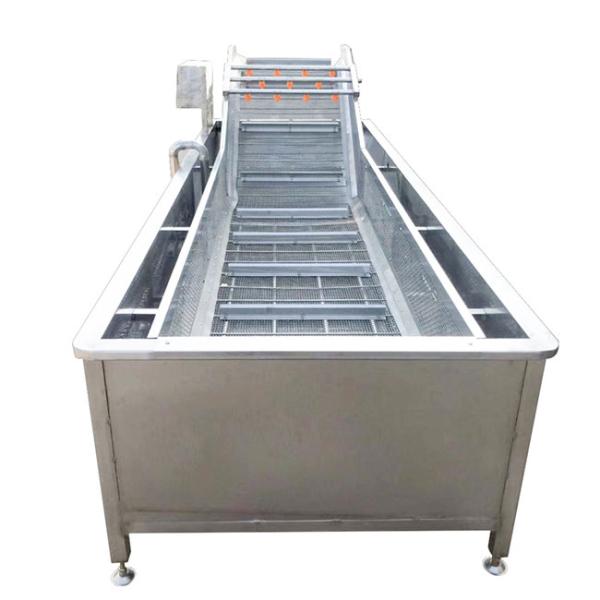

1000kg/H Bubble Washing Machine Images
|
